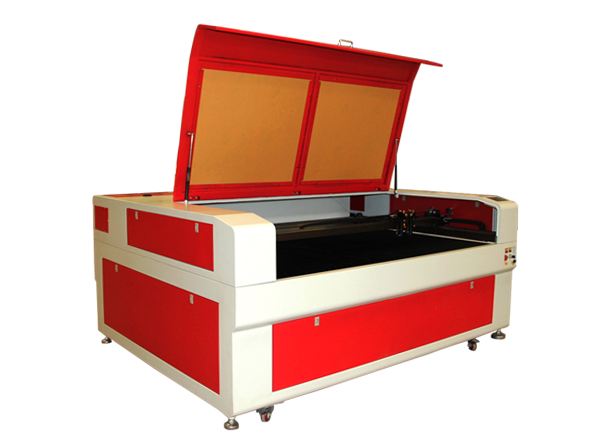

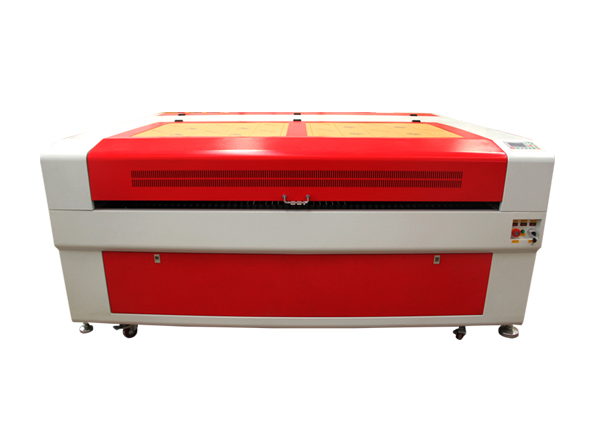

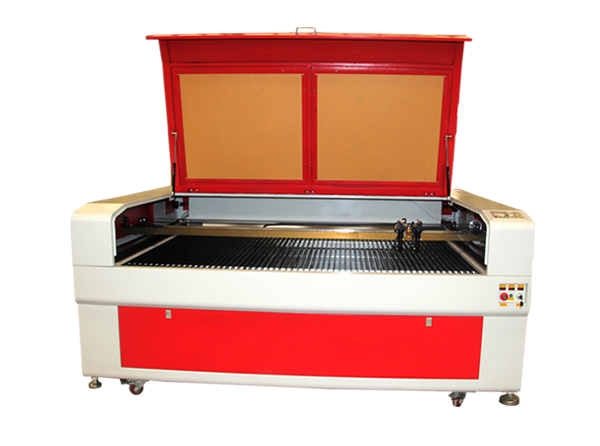

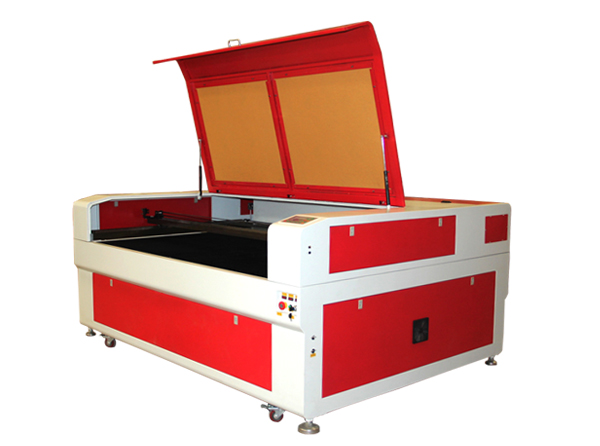

1812 Large format laser cutting machine

Inquire Now

Next Product

PRODUCT DESCRIPTION

BrandGuangYue LES

Model: GY-1812

Application: Laser Cutting

Condition: New Laser

Applicable Material: Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood

Cutting Thickness: 0-20mm( (Depending on the material

Cutting Area: 1800x1200mm

Lift range0-500mm

Cutting Speed: 500m/s

Engraving speed:1500mm/s

CNC or Not: Yes

Cooling Mode: Water Cooling

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Place of Origin: Shandong, China (Mainland)

Certification: CE

After-sales Service Provided: Engineers available to service machinery overseas

laser power: 80W90W/100W/130W/150W

Laser Tybe: CO2 sealed off glass laser, wavelength 10.64um

Resolution: 1000DPI

Minimum Letter: Chinese 2mm,  English1mm

Support software: CorelDraw/CAD (Direct Output)

Motor: 57 Stepper motor

Power Voltage: AC 110-220V±10%,50-60Hz



Product features

GY-1812 laser format laser cutting machine,Brand new design  Quality assurance,Quality first quality assurance,Professional, quality, durable.



The nine major advantage of perfection

Red positioning

Adjustable laser energy

Communication monitoring

Water temperature control protection

Blowing flame retardant

power off remember function

High speed control system

Precise mechanical system

Powerful software systems

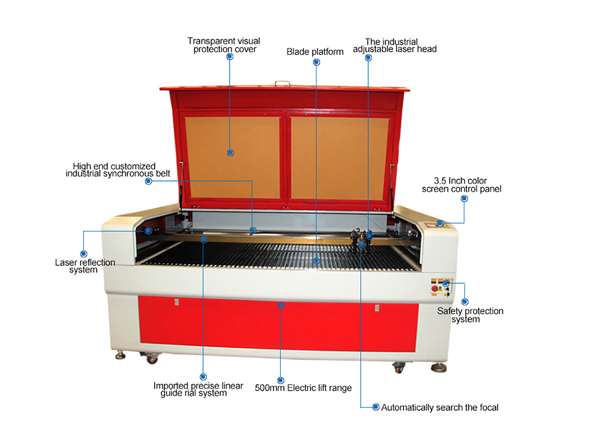

Product details

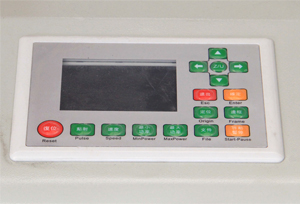

3.5 inch color screen

Intelligent human-machine operating interface

More stable ,More resistant to high pressure and anti-static

Continued carving off function ,working time anticipation

Support feeding,lifting,rotary engraving and push left and right

Support Ethernet  and USB communication.

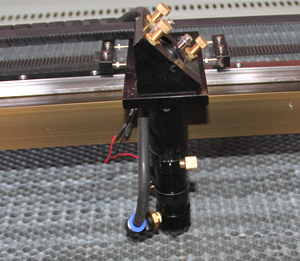

Industrial adjustable laser head

Optional automatic focus system,5cm adjustable up and down laser head,increase or decrease the height according to the thickness of material at any time.Our design purpose is fast and convenient to use.

Precise mechanical System

Imported linear guide,3M synchronous  belt,just motion control drive systems,

large torque stepping motor,make the processing,more accurate cutting.

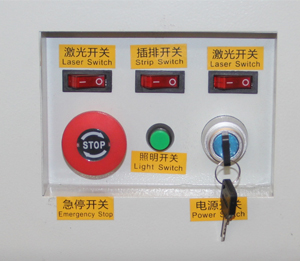

Control switch

In operation, each switch with each other, work together to make it work safe, efficient and fast.

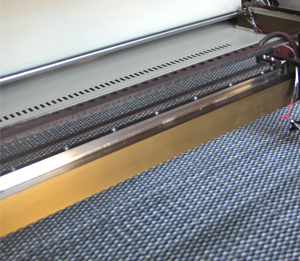

High end customized industrial synchronous belt

High end customized industrial synchronous belt,the safe and stable.

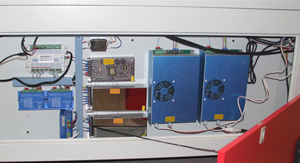

The central control area

DSP digital chip can provide the operating system with high accuracy and high sharpness. It also can finish graphic analysis with high requirements and high quality,can deliver the accurate graphic information command.Just like an elite’s brain which has a well thought-out plan, can do everything in an orderly way.Hongyuan laser power supply-domestic.

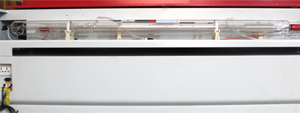

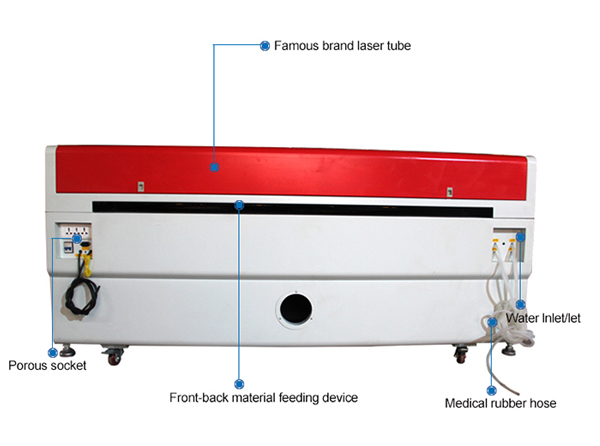

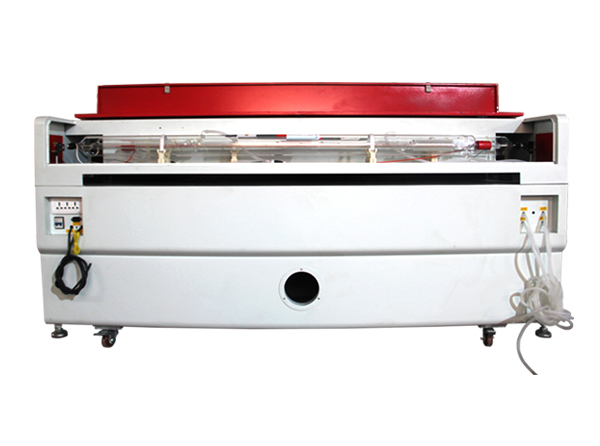

Famous brand laser tube

Famous brand laser tube, high power mode, fast cutting speed, small size, special protection rack, easy to adjust and accurate, comprehensive protection.

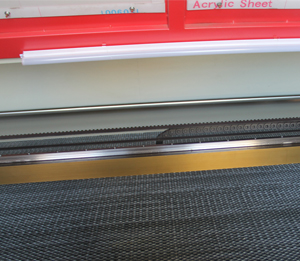

Imported precision linear guide system

It supports the load through the entire stroke length reduce the wear of the beam,and to ensure a better cutting precision.

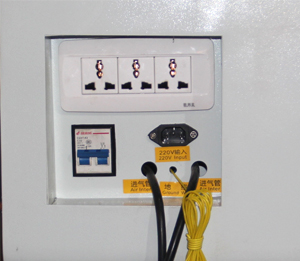

Power  distribution system

Porous socket, convenient and intimate, 220V power input, high sensitive leakage protector, ground wire access to more security.Meet eu market access standards.

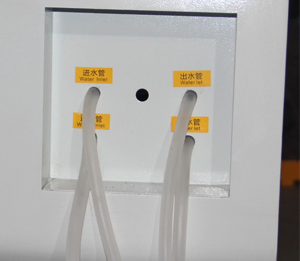

Medical rubber hose

GuangYue Laser cooling tube with medical rubber hose, soft and durable.



57 stepper motor

The motor is 2 times more powerful than ordinary motor, with strong power, reliable performance, safe and fast operation and stable operation.

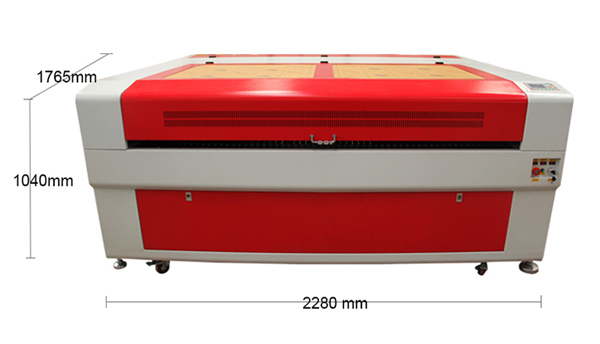

Product size

2280mm*1040mm*1765mm



Product packaging

Standard export package,free-fumigation plywood case

Certification

1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.



Optionnal configuration

Laser head

Famous brand laser head, high working efficiency, precise engraving and cutting,

Two heads, three heads, four headsoptional.

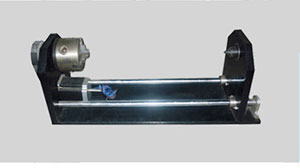

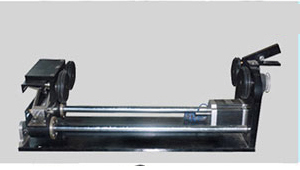

Special rotary

Can be engraved irregular cylinder material.

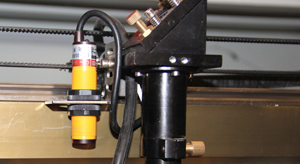

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

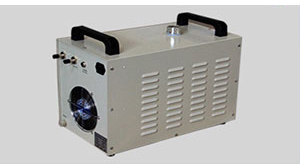

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

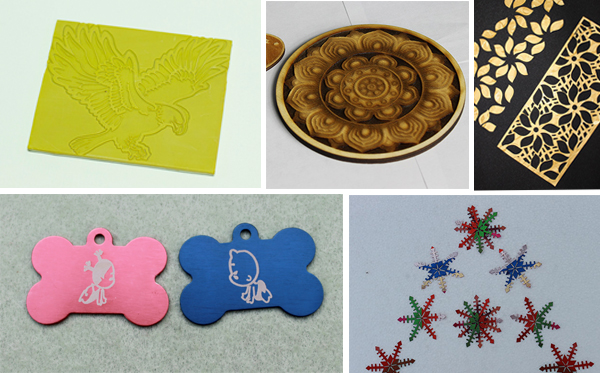

Applied materials

Applicable materials:Plexiglass acrylic,PVC material,leather,plastic,rubber,

plastic,wooden product,paper Products,stone Products,ceramics,non-woven,MDF,

felt and other non-metallic materials.

Applicable industries:Garment industry,packaging box industry,imaging

products industry,writing brush industry,bamboo industry,handicraft industry,

musical instrument industry,plate making industry,advertising industry,aerospace

model car model,leather industry,calabash gourd industry an so on
