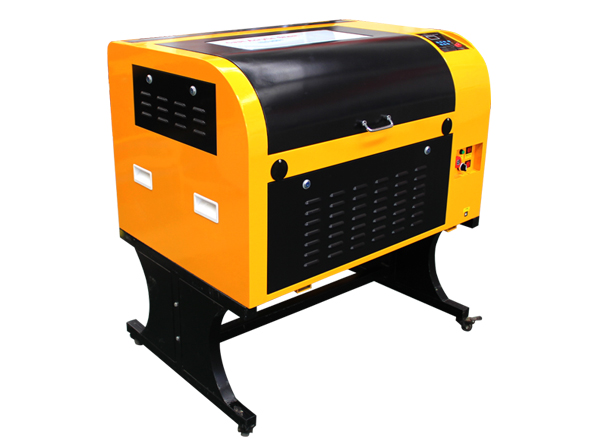

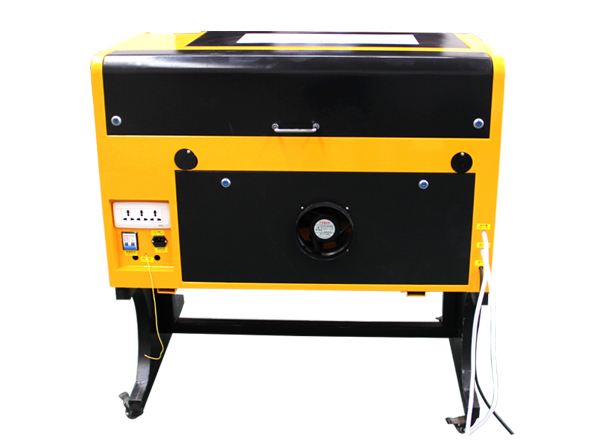

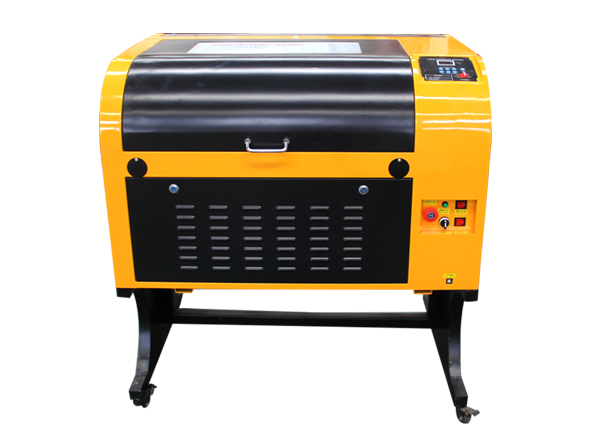

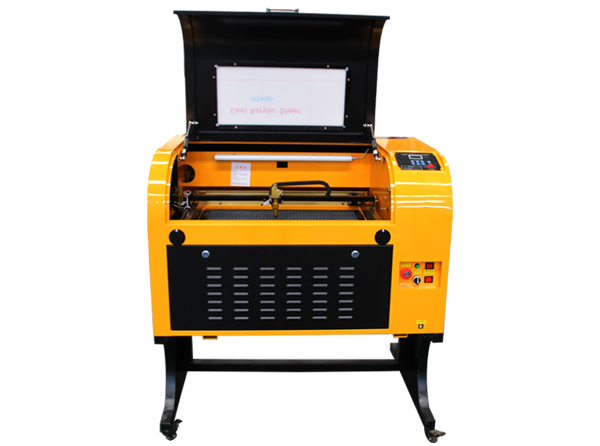

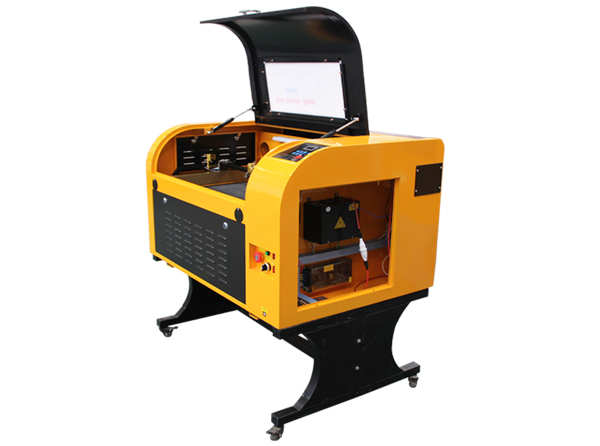

460 Laser engraving machine

Inquire Now

Next Product


Product features

GY-460 mini laser engraving machine is a high cost performance machine,Standard

export configuration,Can be used for engraving or cutting, Axis of double guide rail,

300mm Electric lift range, Precision positioning 0.015mm.

Product parameters

Model: GY-460

Cutting Thickness: 0-15mm( (Depending on the material

Cutting Area: 400x600mm

Lift range0-300mm

Working Speed: 3600m/min

Cooling Mode: Water Cooling

Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Certification: CE

After-sales Service Provided: Engineers available to service machinery overseas

laser power: 40W/50W/60W/80W/100W

Laser Tybe: CO2 sealed off glass laser, wavelength 10.64um

Resolution: 1000DPI

Minimum Letter: Chinese 2mm,  English1mm

Support software: CorelDraw and shenzhou easy engraved

Motor: 42 Stepper motor

Power Voltage: AC 110-220V±10%,50-60Hz

Product details

Digital display control


European standard

laser head

Safety control switch

Famous brand laser


Axis of double Linear


Lifting platform

Power  distribution


30cm electric lift system
Medical rubber hose42 Step motor

High-power axial flow


European mirror frame

Product size


Product packaging

Standard export package,free-fumigation plywood case


1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Optionnal configuration

Special rotary

Can be engraved irregular cylinder material.

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Rotating rollers

It can engraving regular cylindrical material.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

 Applied materials

【Applicable materials】:Organic glass, acrylic, PVC material, leather,cloth,rubber, plastic, wood products,paper

products, bamboo products, stone products and othe non-meterials.Ox horn, ivory, surface oxidized aluminum and so on.

【Applicable industries】:Organic glass, rubber sheet, leather, mould, template,products,handicrafts,advertising decoration,cloth,paper products, bamboo products, stone products, non-woven wool felt industry,tot drilling industryand

the LOGO of each industry.

Sample photos
