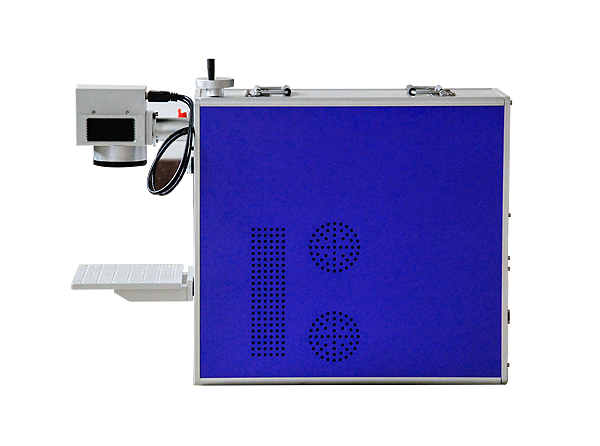

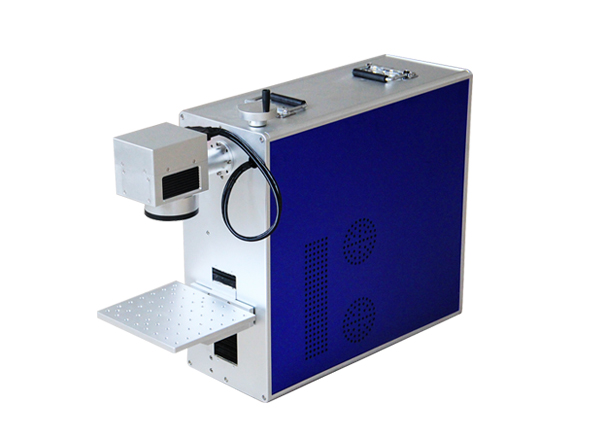

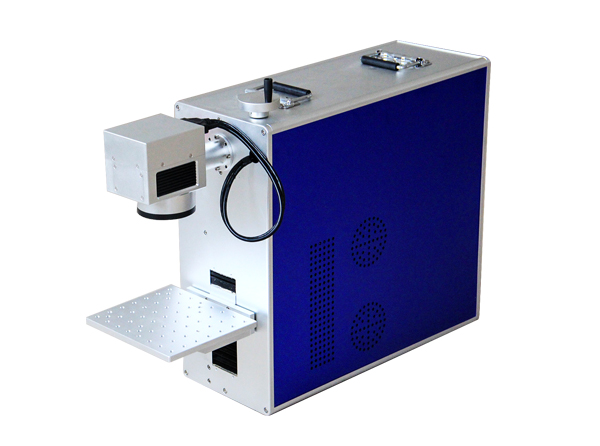

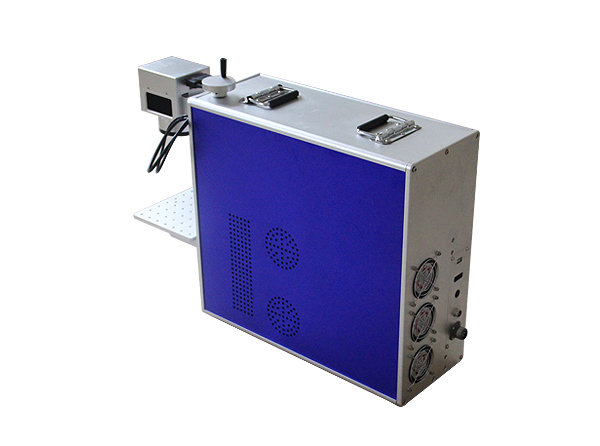

Convenient optical Fiber Marking Machine

Inquire Now

Next Product


Product parameters

BrandGuangYue LES

Model: Convenient Optical Fiber Marking Machine

Maximum laser power:20W

Optical qualityM2:<2

Marking the scope: 110*110mm/  150*150mm

Engraving line speed:≤10000mm/s

Minimum linewidth:0.012mm


Type of cooling:Built-in air cooling

Operating environment:Clean no dust


Optical maser wavelength:1064nm

Carving depth:0.4mm

Minimum character:0.15mm

The laser repetition rate:20KHz-80KHz

The machine electricity power:≤500W

The laser module life:>100000h


Power supply:220V 50HZ/ 110V 60HZ

Place of Origin: Shandong, China (Mainland)

Certification: CE/ISO

After-sales Service Provided: Engineers available to service machinery overseas

Product features

Convenient Optical Fiber Marking Machine,Brand new design  quality assuranceSpeed, fine, super long warranty.

The fine major advantage of perfection

Red light preview function

Easy to operate

High beam quality

Line is fine

Cooling air cooling way

Low energy consumption

Mark clearly


 Agility efficient


Product details


Total switch, red light switch, vibration mirror switch.

Lifting shaft

Arbitrary height can be adjusted to suit various job requirements.

High speed digital scanning galvanometer system

With the imported high speed mirror scanning head, the delay is greatly reduced and the marking speed is improved.

Field lens

The field mirror has a good photosensitive effect, and improves the ability of the edge beam incident to the detector, so that the non-uniform illumination on the detector's photosensitive surface is homogenized.

Working platform

It is safe and fast.

Original imported rf metal laser

Original imported rf metal laser, good optical quality, long life.

Dc power supply

Provide steady and reliable direct current.

Portable handle

Compact size and easy to carry.

Special control card for optical fiber

The software is powerful and supports PLT,PCX,DXF,BMP, etc., and can directly use SHX and TTF fonts.Support automatic coding, print serial number, batch number, date, bar code, qr code, automatic jump number, etc.

Product size



Product packaging

Standard export package,free-fumigation plywood case

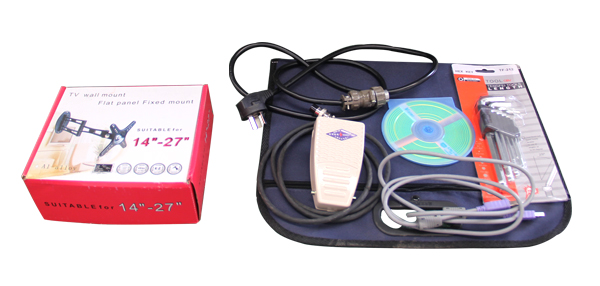

Product parts


1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Applied materials

【Applicable materials】: Metallic material and  non-metallic material,such

as gold, silver, copper, aluminum, steel, iron, acrylic, plastic, PVC,paper, double

color board, alloy and oxide, ABS, epoxy resin, ink, ceramics, etc.

 【Applicable industries】:Plastic transmission button, IC chip, digital product

parts, precision machinery, jewelry, sanitary ware, measuring tools and tools,

watch glasses, electrical, electronic components, hardware accessories, hardware

tools,mobile phone fittings, plastic products, medical equipment,high - precision

products such as building materials.
