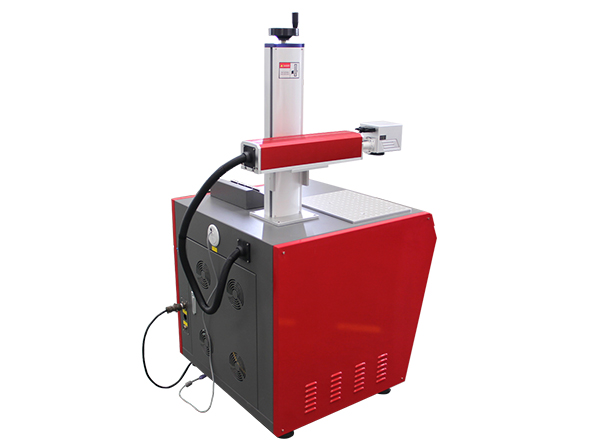

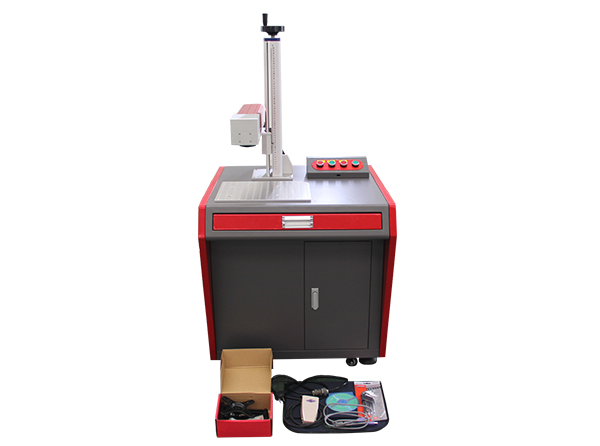

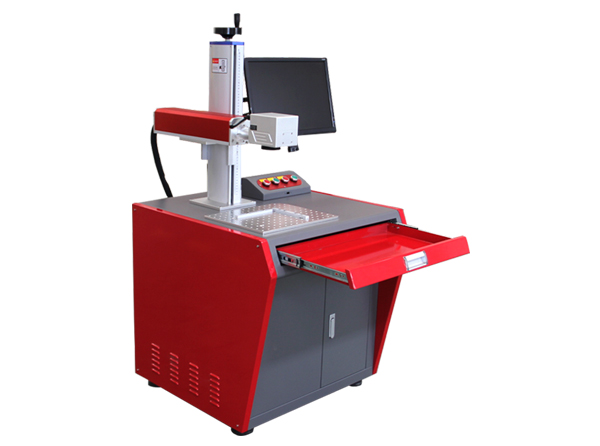

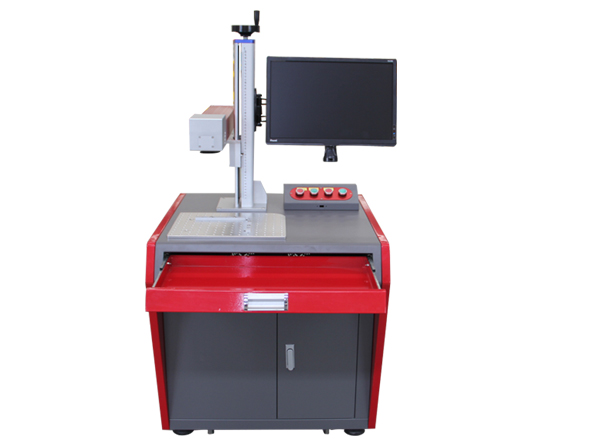

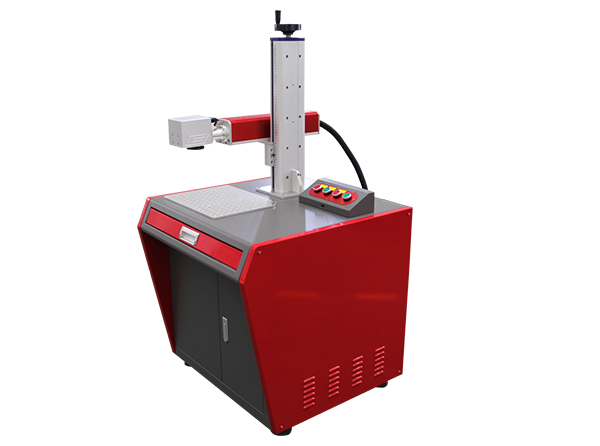

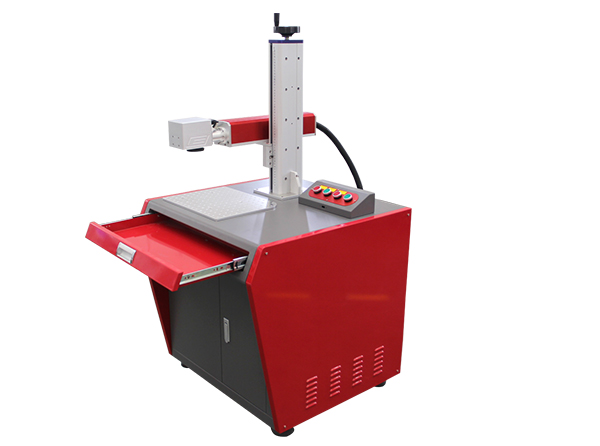

Cabinet optical Mopa Fiber Laser Marking Machine

Inquire Now

Next Product

PRODUCT DESCRIPTION

Product parameters

BrandGuangYue LES)

Model:Cabinet Optical Fiber Marking Machine

Laser power:20W/30W/50Wfor choice

Optical quality:<2

Marking the scope:150*150/ 200*200/ 300*300(mm)

Engraving line speed:≤10000mm/s

Minimum linewidth:0.012mm

Repeatability:±0.003mm

Type of cooling:Built-in air cooling

Operating environment:Clean no dust

Humidness:5%-75%

Optical maser wavelength:1064nm

Carving depth:≤1.0mm(20W)/ ≤2.0mm(30W)/ ≤3.0mm(50W)

Minimum character:0.15mm

The laser repetition rate:20KHz-100KHz

The machine electricity power:≤500W

The laser module life:>100000h

Temperature:10℃-35℃

Power supply:220V 50HZ/ 110V 60HZ

Place of Origin: Shandong, China (Mainland)

Certification: CE/ ISO

After-sales Service Provided: Engineers available to service machinery overseas



Product features

Cabinet Optical Fiber Marking Machine,Safety fast  Easy to learn  Strong power  Highly efficient and stable.

1.The machine has simplify structure;

2.Optics system adopts full sealed structure, a red light preview function

3.Good appearance , easy to operate

4.Photoelectric conversion efficiency is high, high beam quality, line is fine , light spot

5.Cooling air cooling way , low energy consumption

6.Powerful software, compatible CoreldrawCADPhotoshop software

7.Support PLTPCXDXFBMP etc.can be used directly SHXTTF word stock



The fine major advantage of perfection

Red light preview function

Easy to operate

High beam quality

Line is fine

Cooling air cooling way

Low energy consumption

Mark clearly

Support PLTPCXDXFBMP ETC

 Agility efficient



Product details

CONTROL PANEL

Humanized control system , the new USB dustproof plug design , control system easy to learn , can be used offline.



LIFTING SHAFT

Lift error steady lifting , high precision , yarn , marking more accurate , fine.



The galvanometer

The galvanometer scanning system , adopting new technologies,working principle of the new material , new craft , new design and manufacturing.



Field lens

Small size , suitable for bad environment , friendly interface , think what you see is what you get;you can see the input screen , the screen shows the information , will be one of the native target information.



Working platform

Compact structure , strong and lightweight , small , interface is simple , flexible adjustable machining direction , deft.first-line brand,its just like the powerful heart which can provide the laser machine with steady and forceful power.



Scaleplate

High performance scale , engraving effect is more exquisite , calibration more accurate.



High quality radio frequency laser

Good beam quality , laser tube long life , high cost performance. Under the condition of the laser off without, metal and nonmetal material marking light pulse,the peak power,repeat the wide frequency range.



Security socket

Proprietary aviation plug , docking is simple , rapid , accurate , low impedance , signal output more smoothly.



Special control card for optical fiber

The software is powerful and supports PLT,PCX,DXF,BMP, etc., and can directly use SHX and TTF fonts.Support automatic coding, print serial number, batch number, date, bar code, qr code, automatic jump number, etc.

Keyboard mouse tray

Keyboard mouse tray, convenient,user-friendly design.



Product size

1450mm*790mm*625mm



Product packaging

Standard export package,free-fumigation plywood case

Product parts



Certification

1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.



Applied materials

Applicable materials: Metallic material and  non-metallic material,such

as gold, silver, copper, aluminum, steel, iron, acrylic, plastic, PVC,paper, double

color board, alloy and oxide, ABS, epoxy resin, ink, ceramics, etc.



 Applicable industries:Plastic transmission button, IC chip, digital product

parts, precision machinery, jewelry, sanitary ware, measuring tools and tools,

watch glasses, electrical, electronic components, hardware accessories, hardware

tools,mobile phone fittings, plastic products, medical equipment,high - precision

products such as building materials.
