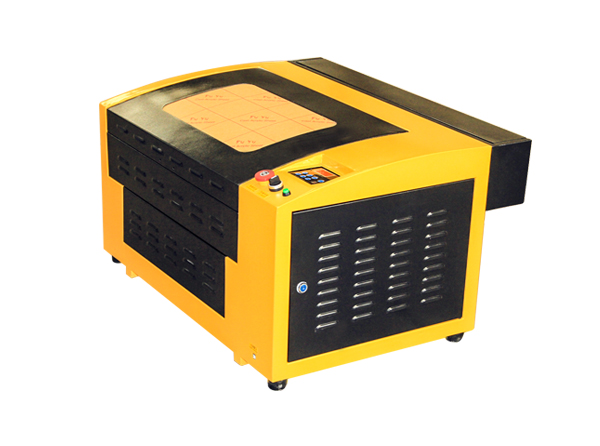

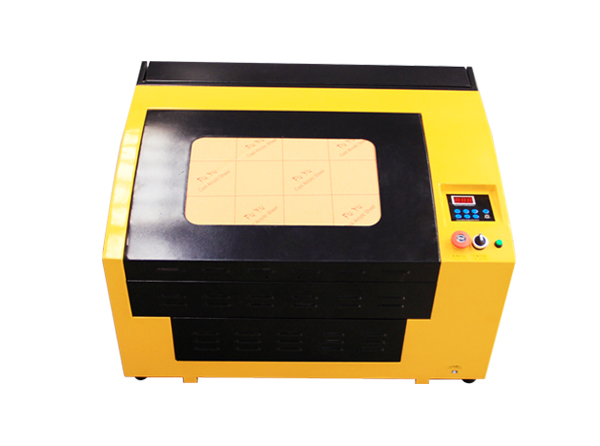

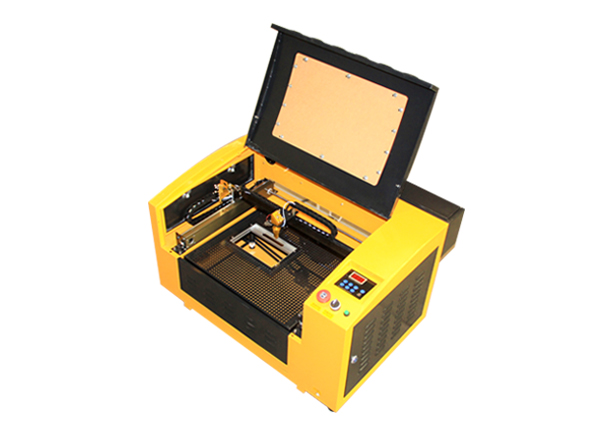

X430 Laser engraving machine

Inquire Now

Next Product

PRODUCT DESCRIPTION

BrandGuangYue LES

Model: GY-X430

Application: Laser Engraving

Condition: New laser

Laser Type: CO2 sealed off glass laser, wavelength 10.64um

Engraving Area: 300*400mm

Engraving Speed: 500mm/s

CNC or Not: No

Cooling Mode: Water Cooling

Applicable Material: Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood

Graphic Format Supported: BMP, DST, DWG, DXF, DXP

Place of Origin: Shandong, China (Mainland)

Dimension(L*W*H): 80*64*43cm

Certification: CCC, CE, ISO

After-sales Service Provided: Engineers available to service machinery overseas

Laser tube power: 40w 50w 60w

Working Voltage: AC110-220V 10%.50-60HZ

laser engraving machine color:Black, yellow

Laser tube: CO2 Glass Laser Tube

Support software: CorelDraw and shenzhou easy engraved

configuration of laser engraving machine: on line

Cutting thickness: 0-8mm

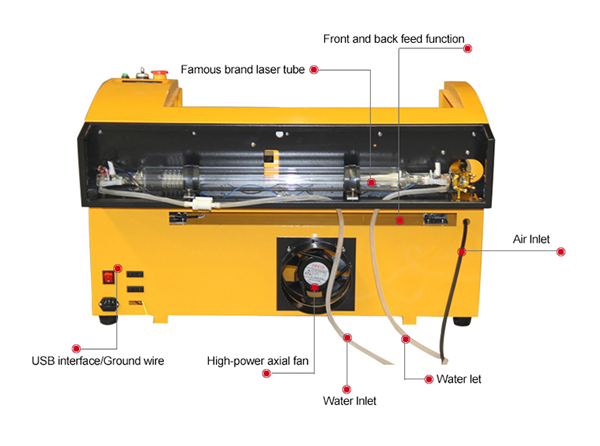

Product features

GY-X430  upgraded version,add front and back feed function,economic and practical use is wide.



The six major advantage of perfection

Red positioning

Adjustable laser energy

Communication monitoring

Water temperature control protection

Blowing flame retardant

Power off remember function

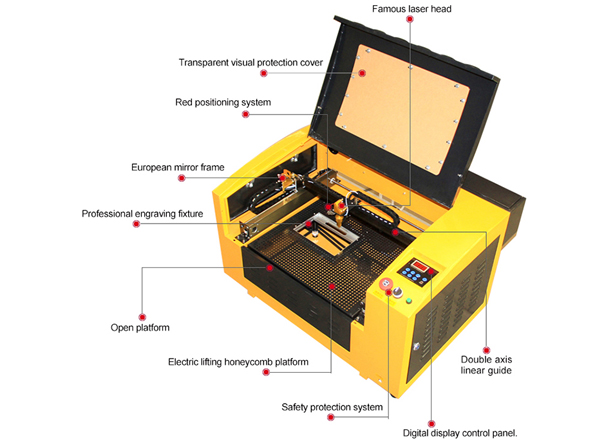

Product details

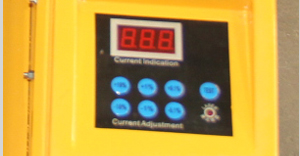

Digital display control panel

General all over the word,simple button,digital display,visual manlpulation,greatly improve the work efficiency.

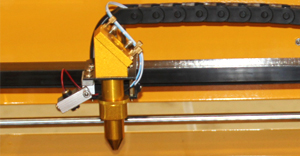

European standard laser head

A precision metal mold laser, laser energy is adjustable, wear resistance, resistance to high temperature, 360°is adjustable.Have a red light positioning system, a positioning, convenient and quick.



Safety control switch

In operation, each switch with each other, work together to make it work safe, efficient and fast.

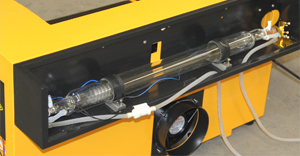

Famous brand laser tube

Famous brand laser tube, high power mode, fast cutting speed, small size, special protection rack, easy to adjust and accurate, comprehensive protection.



Axis of double Linear guide

It supports the load through the entire stroke length reduce the wear of the beam,and to ensure a better cutting precision.

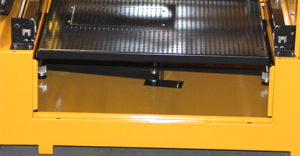

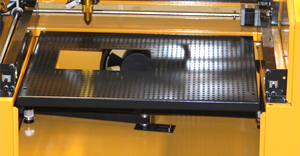

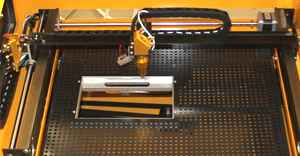

Lifting platform

Knives platform/Honeycomb Platformchoose one

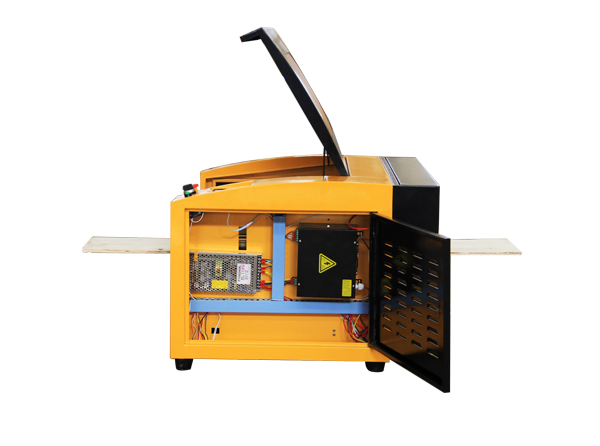

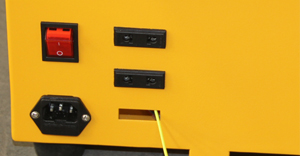

Power  distribution system

Porous socket, convenient and intimate, 220V power input, high sensitive leakage protector, ground wire access to more security.Meet eu market access standards.



15 cm electric lift system

The machine has 15 cm electric lift system to meet the processing requirements of high / thick products.



Medical rubber hose

GuangYue Laser cooling tube with medical rubber hose, soft and durable.

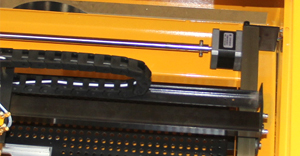

42 Step motor

Strong power, reliable performance, safe and fast, ensure the normal operation of the machine.

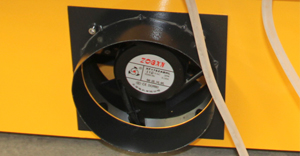

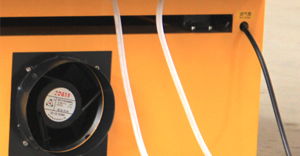

High-power axial flow fan

Cover the motor structure, strong power; Suction effect is excellent, impedance protection; High speed, low noise, durable.

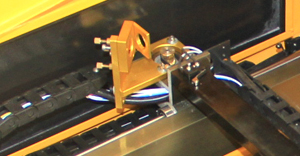

European mirror frame

Adopts laser light frame, can choose imported reflector, long life, high precision.

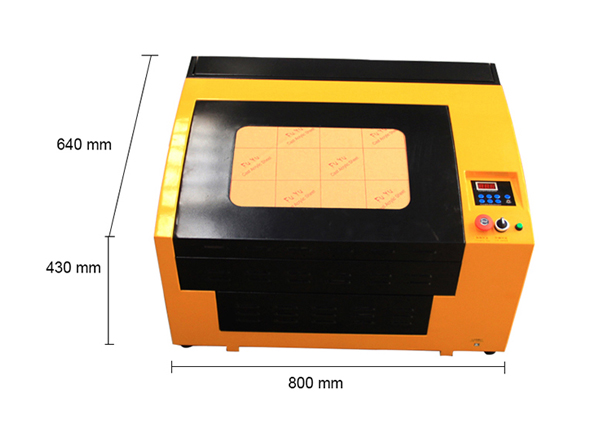

Product size

800mm*430mm*640mm

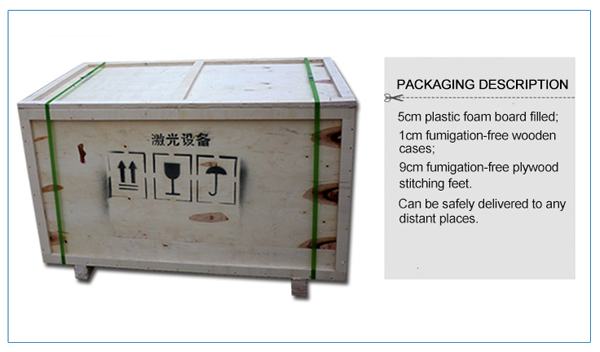

Product packaging

Standard export package,free-fumigation plywood case



Certification

1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Optionnal configuration

Special rotary

Can be engraved irregular cylinder material.

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

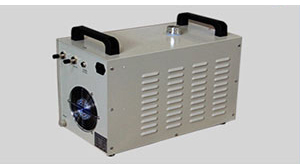

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

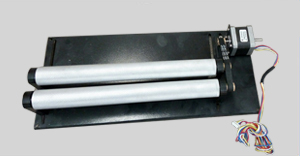

Rotating rollers

It can engraving regular cylindrical material.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

Applied materials

Organic glass, acrylic, PVC material, leather,cloth,rubber, plastic, wood products,paper

products, bamboo products, stone products and othe non-meterials.Ox horn, ivory, surface oxidized aluminum and so on.



Organic glass, rubber sheet, leather, mould, template,products,handicrafts,advertising decoration,cloth,paper products, bamboo products, stone products, non-woven wool felt industry,tot drilling industryand

the LOGO of each industry.
