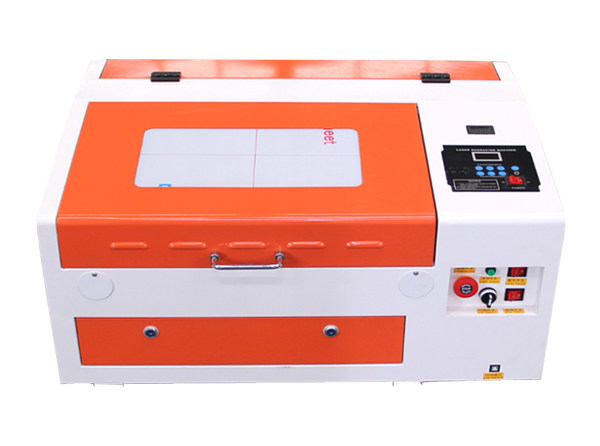

430 Mini Laser Engraing Machine

Inquire Now

Next Product


Product features

GY-430 Handicraft carving machine,Exclusive first,with high precision, high speed,High work efficiency. Electric lift to meet the different thickness of the engraving material,Red light positioning to meet the requirements of irregular material positioning. Guangyue-Professional manufacturers with professional  services.

Product parameters

BrandGuangYue LES

Model: GY-430

Application: Laser Engraving

Condition: New laser

Laser Type: CO2 sealed off glass laser, wavelength 10.64um

Engraving Area: 300*400mm

Engraving Speed: 400mm/s

Laser power of laser engraving machine: 40W 50W 60W

Cooling Mode: Water Cooling

Applicable Material: Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood

Graphic Format Supported: BMP, DST, DWG, DXF, DXP

Place of Origin: Shandong, China (Mainland)

Brand Name: GY

Model Number: GY-430

Dimension(L*W*H): 85*56*40cm

Certification: CCC, CE, ISO, FDA

After-sales Service Provided: Engineers available to service machinery overseas

Software Supported: CorelDraw

Color: Orange

Support software: CorelDraw and shenzhou easy engraved

Minimum Letter: Chinese 2mm,  English1mm

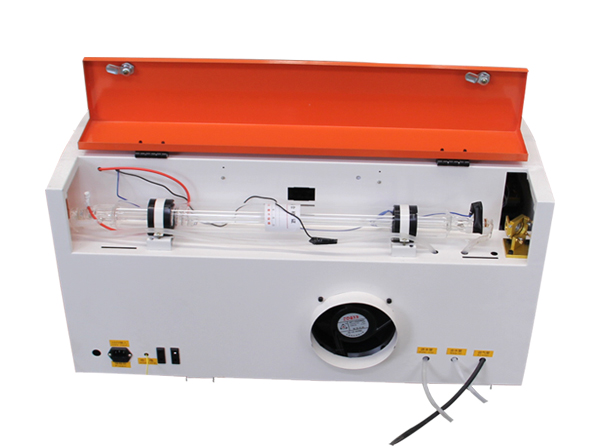

Laser tube: CO2 Glass Laser Tube

Keywords: laser engraving cutting machine

The six major advantage of perfection

Red positioning

Adjustable laser energy

Communication monitoring

Water temperature control protection

Blowing flame retardant

Power off remember function

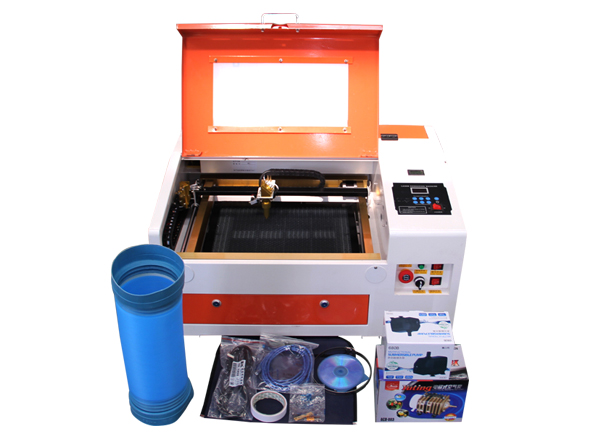

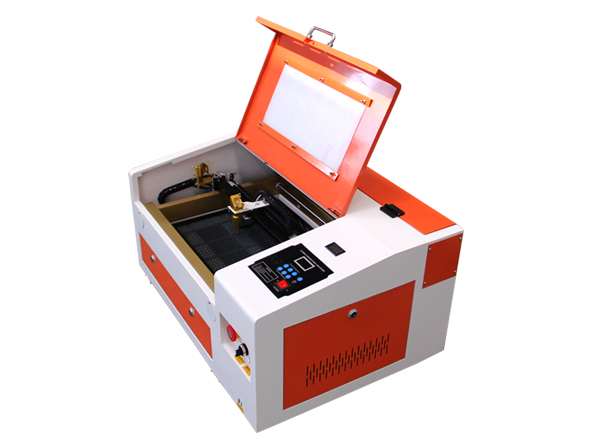

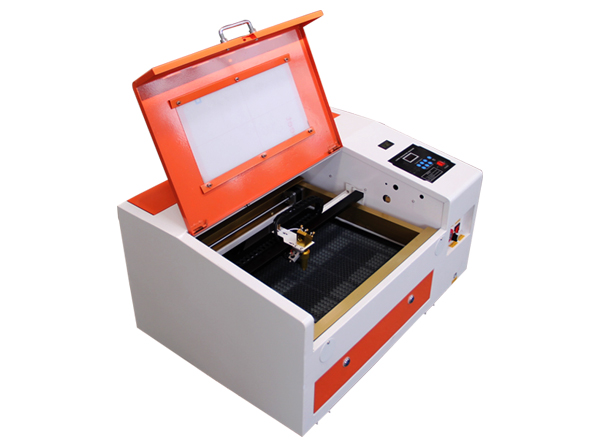

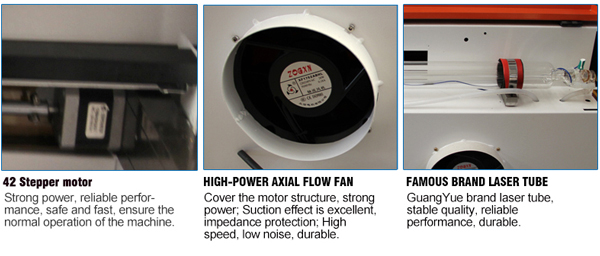

Product details

Product size


Product packaging

Standard export package,free-fumigation plywood case



1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.

Optionnal configuration

Special rotary

Can be engraved irregular cylinder material.

Automatically search the focal

According to the different material, can automatically search the focal length, it is suitable for the specified  machine type.

Cold water machine

Protect the laser tube for better work and extend the life of the laser tube.

Chuck rotation

Can carve various cylinder material, such as gourd, cup, etc.

Rotating rollers

It can engraving regular cylindrical material.

Laser warning

Laser is not visible in the laser working state, laser light illuminates the laser at work.

Applied materials

[Applicable materials] Organic glass, acrylic, PVC material, leather,cloth,rubber, plastic, wood products,paper products, bamboo products, stone products and othe non-meterials.Ox horn, ivory, surface oxidized aluminum and so on.

[Applicable industries] Organic glass, rubber sheet, leather, mould, template,products,handicrafts,advertising decoration,cloth,paper products,bamboo products, stone products, non-woven wool felt industry,tot drilling industryand the LOGO of each industry.

Sample photos
