L40S Vertical Laser Engraing Machine

Inquire Now

Next Product


Product description

BrandGuangYue LES)

Model: GY-L40S

Application:  Laser Engraving

Condition:  New

Laser Type:  CO2 sealed off glass laser, wavelength 10.64um

Laser power: 40W/50W

Max engraving area:  200*100 mm

Working area:200*100mm

Positioning way:One-time positioning

Engraving Speed:  500mm/s

CNC or Not:  No

Cooling Mode:  Water Cooling

Graphic Format Supported:  AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Place of Origin:  China (Mainland)

Dimension(L*W*H):  1080X360X420

Certification:  CE ISO

After-sales Service Provided:  Engineers available to service machinery overseas

Color: Gray

Total power: <200W

Product features

GY-L40S  Laser Engraver Machine,Small and precise need not be dimmed,The engraving depth is good power.


The six major advantage of perfection

One-time positioning

The engraving speed is arbitrary

New technology

Stable light path

Famous brand laser power

Simple and fast typesetting

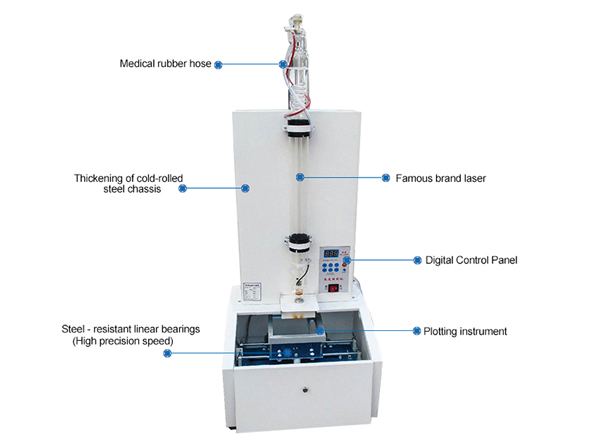

Product details

plotting instrument

With dual drive control system, the work is accurate, smooth operation, high performance control chip, high stability, USB port printing, starting position, can start printing anywhere.

Famous brand laser tube

Famous brand laser tube, with low brightness point, stable beam, stable power, more stable, more efficient, more durable.

Famous laser power supply

Famous laser power supply, stable output, strong power, low failure rate, simple replacement.

Digital display control panel

General all over the word,simple button,digital display,visual manlpulation,greatly improve the work efficiency.

Side large capacity heat pipe

On the side of the case, there is a vent tube, which can effectively discharge smoke and heat.

Cold-rolled steel chassis

Thickening of cold-rolled steel chassis,the thickness is more accurate, the surface is smooth and beautiful, the hardness is high.

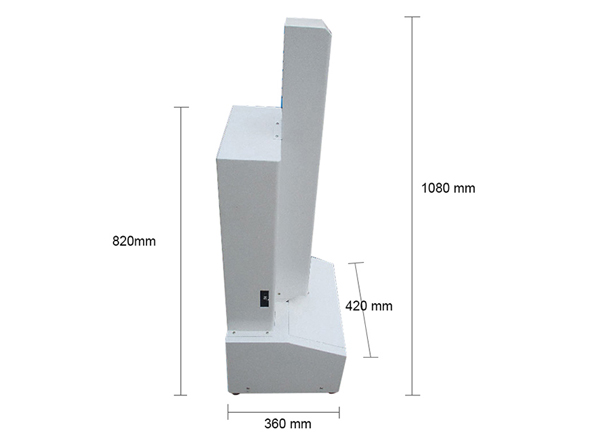

Product size



Product packaging

Standard export package,free-fumigation plywood case



1. ISO 9001:2008 certificates;

2. Alibaba. com Assurance Supplier;

3. CE certificates

4. FDA certificates...etc.
